Martek Co., Ltd

Two-step rapid analysis: Pretreatment + gene analysis, completed within 2 hours
Integrated design: PCR and capillary electrophoresis (CE) completed in a single device
High-efficiency batch processing: Simultaneous analysis of 8 samples (including 2 negative/positive controls)
Space-saving: 395 mm (W) × 300 mm (D) × 370 mm (H), weighing only 14 kg
Fully automated workflow: Eliminates human error and ensures high reproducibility

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

PCR + Capillary Electrophoresis: All in One. Traditional gene detection processes are cumbersome, requiring four main steps: sampling, nucleic acid extraction, polymerase chain reaction (PCR) amplification, and fragment analysis. This is not only time-consuming but also increases the overall detection cost.

The dual-function fully automated system—Qsep Ultra—combines a dedicated direct PCR reagent kit, significantly simplifying the detection process to just two steps:

Sampling → Start the simplified automated process → Nucleic acid detection is completed quickly, and digital analysis reports are automatically generated, achieving a truly high-efficiency, low-human-error molecular diagnostic workflow.

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

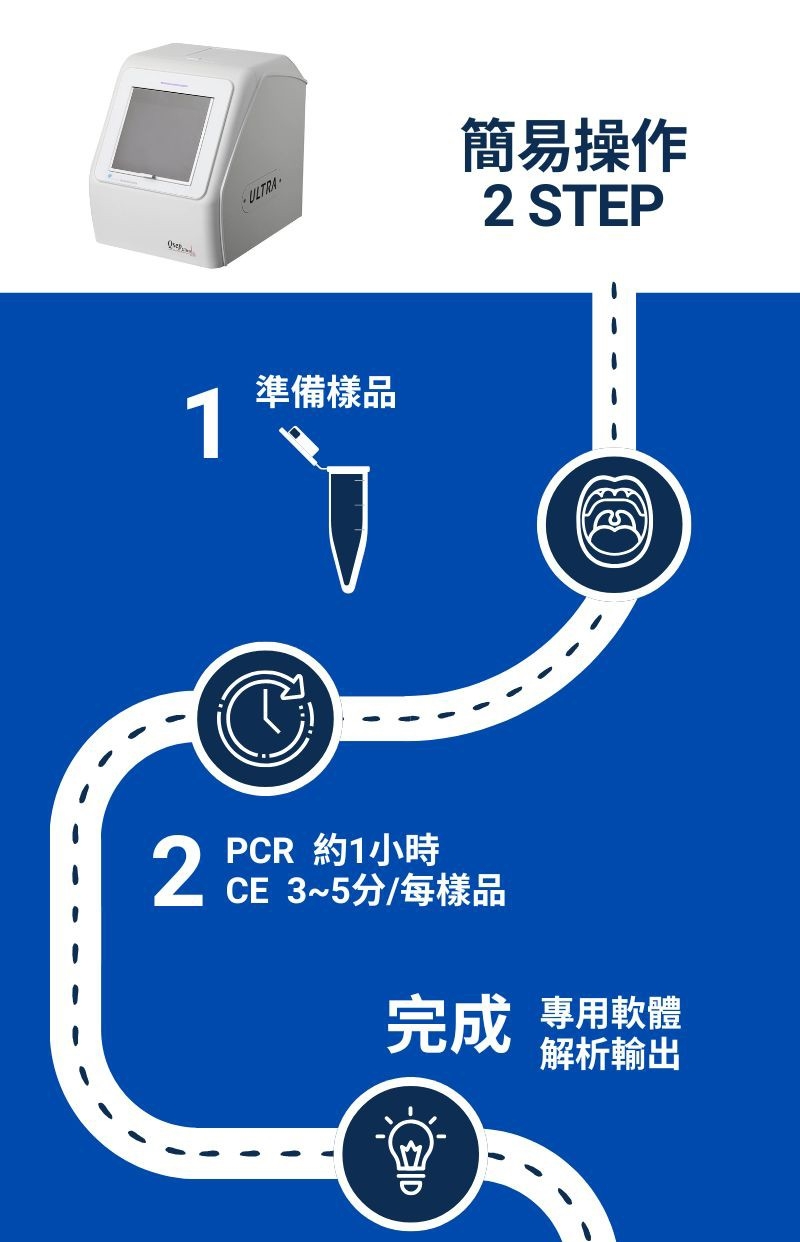

Simple 2-Step Operation
Two-Step Rapid Analysis: Pretreatment + Gene Analysis, completed within 2 hours
Integrated Design: PCR and capillary electrophoresis (CE) completed in a single device
High-Efficiency Batch Processing: Simultaneous analysis of 8 samples (including 2 negative/positive controls)
Space-Saving: 395 mm (W) × 300 mm (D) × 370 mm (H), weighing only 14 kg
Fully Automated Process: Eliminates human error and ensures high reproducibility

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

Qsep Ultra Big Health Gene Detection System Analysis Cartridge

Multiple Detection Items

Carbohydrate Metabolism (ADRB2)
Alcohol Metabolism (ALDH2)
Cellular Antioxidant (GPX1)
Liver Detoxification (NQO1)
Drug Metabolism (CYP2C9/CYP2C19)
Lipid Metabolism (ADRB3/PPARG/UCP1)

• Analyzes multiple gene targets at once

• High sensitivity analysis level of 2 pg/µl

• Sample analysis completed in three minutes

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

Dedicated capillary cartridges enable highly sensitive, continuous, automated analysis.

The Qsep Ultra utilizes dedicated capillary electrophoresis cartridges, simplifying the operation process, reducing human intervention, and automating the migration, detection, and washing processes, supporting continuous high-throughput sample analysis.

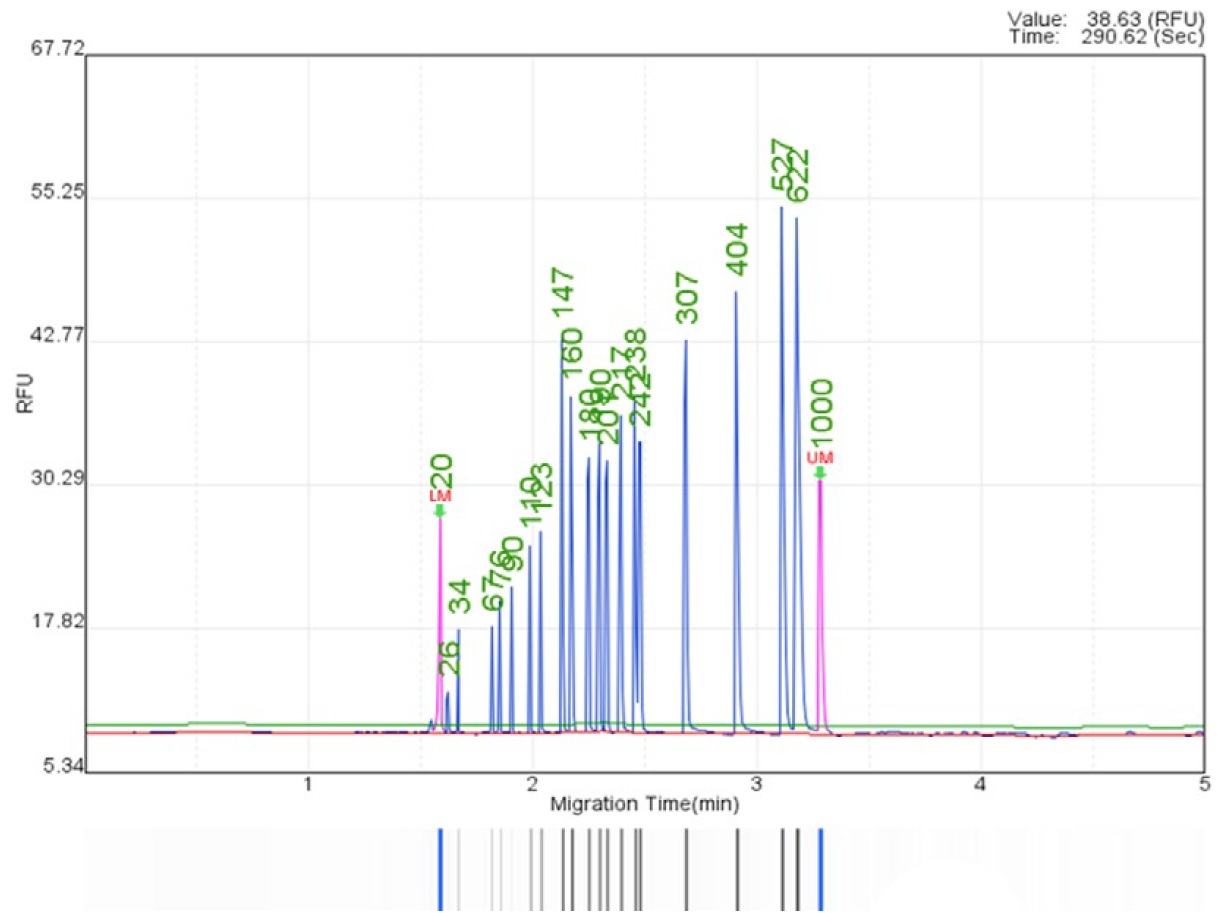

The system features high resolution and real-time data output. Migration results are simultaneously displayed on the screen in both Signal View and Gel View formats, assisting operators in quickly interpreting results and controlling quality.

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

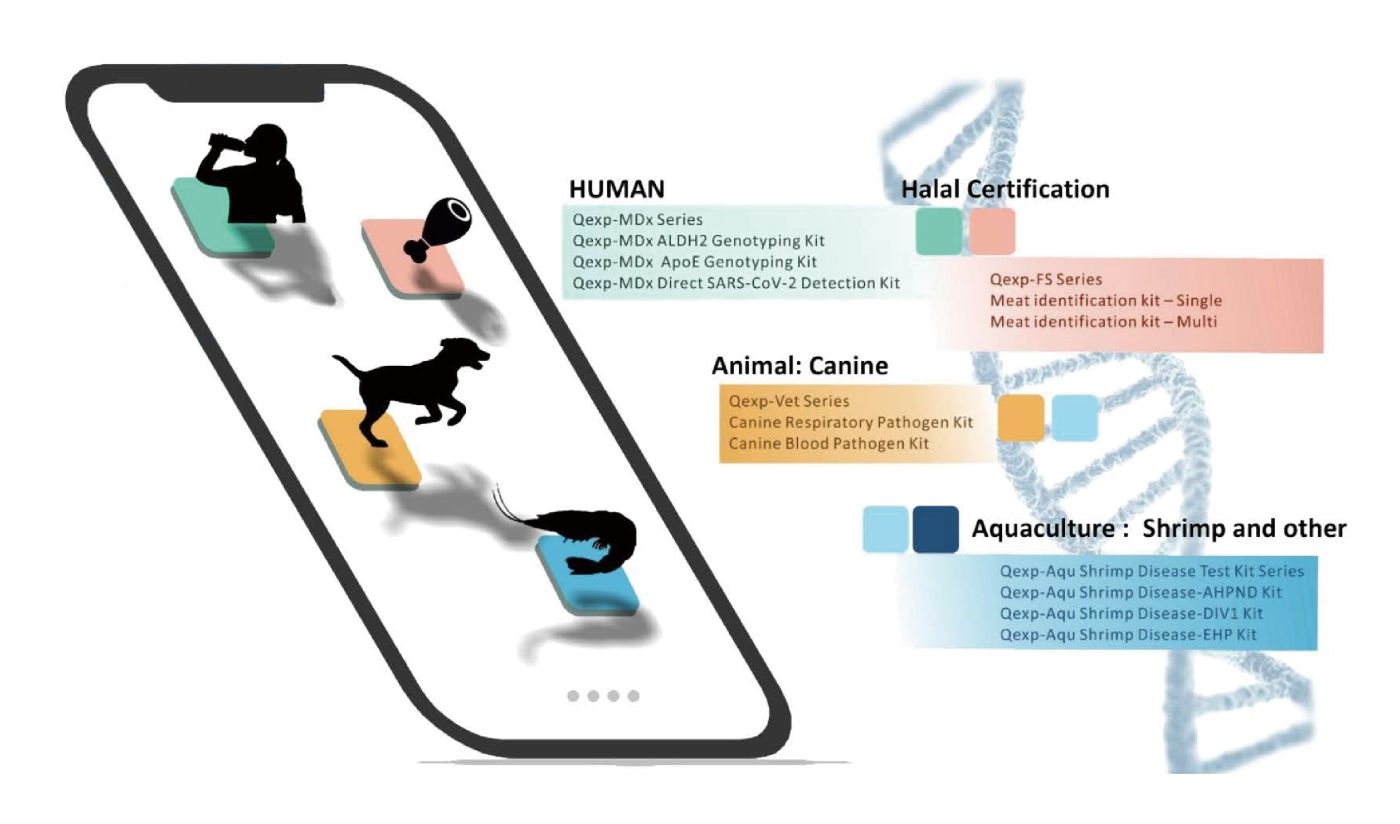

A Multifunctional Gene Analysis System with Three Applications

Flexibly selectable analysis modes to meet diverse application scenarios based on research needs

● Manual Mode: Users can freely choose to perform PCR, capillary electrophoresis (CE), or a combined PCR+CE operation, adjusting the operation procedure according to the reagents used.

Built-in memory function: Stores and reproduces the operating conditions corresponding to individual reagents, improving experimental efficiency and consistency.

● Auto Mode: Reagent kits and analysis software can be customized according to application needs, supporting functional expansion for different research directions.

Customized primer design and mass production services are provided to assist in establishing a dedicated analysis system.

※Currently, 7 analytical kits covering 9 items have been developed and commercialized specifically for human metabolic research.

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

Application Example: ALDH2 Genotyping (Alcohol Metabolism Related)

The ALDH2 (acetaldehyde dehydrogenase 2) genotype is closely related to an individual's ability to metabolize alcohol. This system can quickly determine the ALDH2 genotype, applicable to personalized medicine, nutritional metabolism research, and health risk assessment.

Wild Type: No mutation, lowest risk
Hetero Type: With one mutation, moderate risk
Mutant Type: Two mutations, highest risk

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

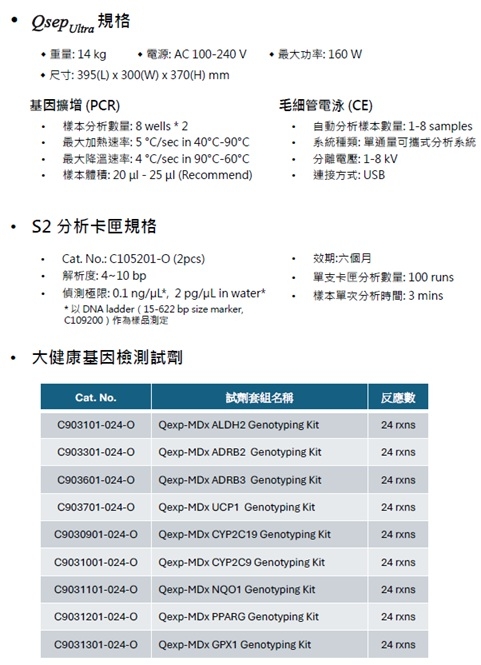

QsepUltra Specifications & S2 Analyzer Cartridge Specifications & Big Health Gene Testing Reagents

• QsepUltra Specifications

 Weight: 14 kg

 Dimensions: 395(L) x 300(W) x 370(H) mm

Gene Amplification (PCR)

• Sample Analysis Capacity: 8 wells * 2

• Maximum Heating Rate: 5°C/sec in 40°C-90°C

• Maximum Cooling Rate: 4°C/sec in 90°C-60°C

• Sample Volume: 20 μl - 25 μl (Recommended)

Capillary Electrophoresis (CE)

• Automated Sample Analysis Capacity: 1-8 samples

• System Type: Single-throughput portable analysis system

• Separation Voltage: 1-8 kV

• Connection Method: USB

S2 Analyzer Cartridge Specifications

• Cat.No.: C105201-O (2pcs)

• Resolution: 4~10 bp

• Detection Limit: 0.1 ng/μL*, 2 pg/μL in water*

* Sample assay using DNAladder (15-622 bp size marker, C109200)

• Shelf Life: Six months

• Number of analyses per cartridge: 100 runs

• Sample analysis time per run: 3 mins

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.

Interactive AR Product Instructions (Please scan the QR code below with your mobile phone or tablet)

*Data provided by Guangding Biotechnology Co., Ltd.

⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.
