Qsep Ultra "2-in-1" Analyzer (PCR+CE)

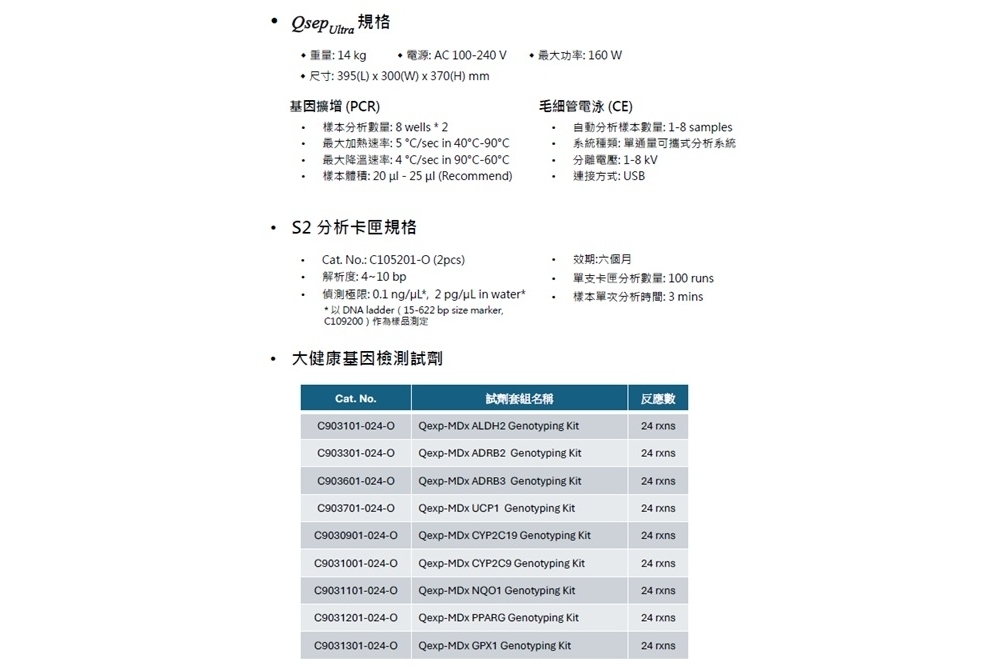

QsepUltra Specifications & S2 Analyzer Cartridge Specifications & Big Health Gene Testing Reagents
• QsepUltra Specifications
Weight: 14 kg
Dimensions: 395(L) x 300(W) x 370(H) mm
Gene Amplification (PCR)
• Sample Analysis Capacity: 8 wells * 2
• Maximum Heating Rate: 5°C/sec in 40°C-90°C
• Maximum Cooling Rate: 4°C/sec in 90°C-60°C
• Sample Volume: 20 μl - 25 μl (Recommended)
Capillary Electrophoresis (CE)
• Automated Sample Analysis Capacity: 1-8 samples
• System Type: Single-throughput portable analysis system
• Separation Voltage: 1-8 kV
• Connection Method: USB
S2 Analyzer Cartridge Specifications
• Cat.No.: C105201-O (2pcs)
• Resolution: 4~10 bp
• Detection Limit: 0.1 ng/μL*, 2 pg/μL in water*
* Sample assay using DNAladder (15-622 bp size marker, C109200)
• Shelf Life: Six months
• Number of analyses per cartridge: 100 runs
• Sample analysis time per run: 3 mins
⚠️ This product is for research use only and is not suitable for clinical diagnosis or treatment.
